3 Bow Bimini Top – Aluminium

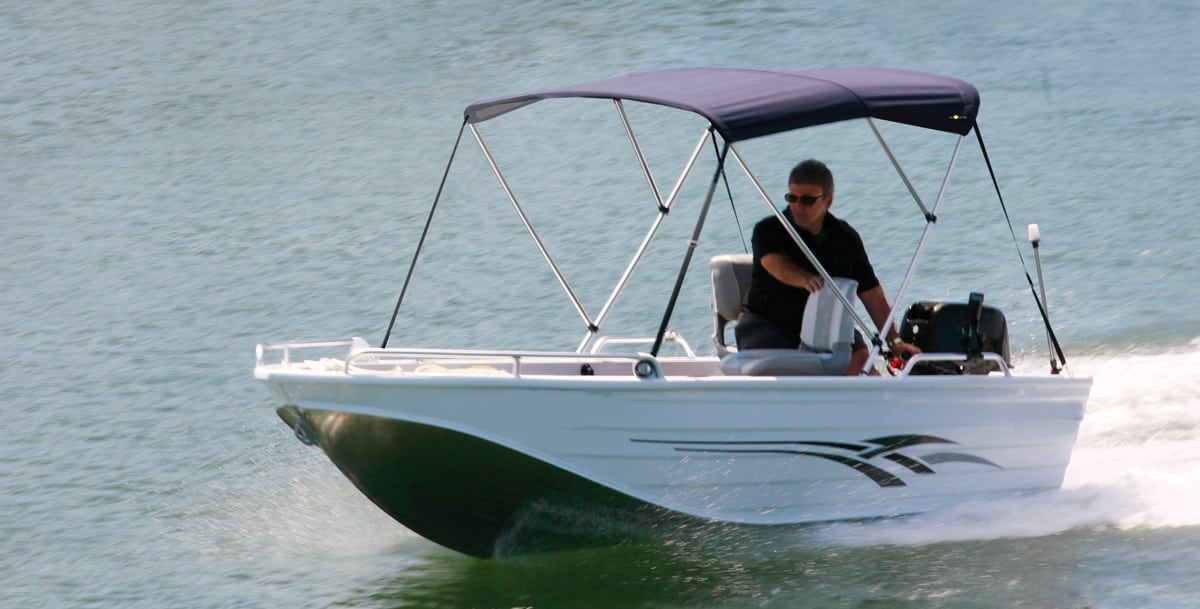

The Oceansouth 3 Bow Bimini Top is a versatile and durable shade solution for your boat. With its Ø25mm snap lock frame, it provides a sturdy and reliable structure to shield you from the sun and weather. The high-tech polyester ATLAS canvas, weighing 310 g/m2, offers excellent UV and weather resistance, ensuring long-lasting performance even in challenging marine conditions.
One notable feature of this bimini top is its flexibility. If needed, it can be shortened to a height of 1.1m, allowing you to customize it to your specific preferences. It also boasts exceptional color fastness to light, rated grade 6-7, ensuring that it maintains its vibrant appearance over time. The package includes an integrated storage boot, fabric, heavy-duty webbing straps, and components for easy installation. With a maximum speed rating of 45 knots, the Oceansouth 3 Bow Bimini Top combines functionality, adaptability, and performance, making it an ideal addition to your boat for sun protection and comfort.

  • Ø25mm Snap Lock Frame
  • High Tech Polyester ATLAS Canvas 310 g/m2
  • If needed, Bimini can be shortened to 1.1m Height
  • UV & weather resistant, colour fastness to light grade 6-7
  • Supplied with Integrated Storage Boot, Fabric, Heavy duty webbing straps, and components.
  • Max. Speed Rating 45 knots


Product AddOns

900mm Length - Angled Bimini Top Support Poles (Aluminium)

1100mm Length - Fixed Bimini Top Support Poles (Aluminium)

Out of stock

700 - 1250mm Length - Telescopic Bimini Top Support Poles (Aluminium)

From: $289.09
  • SKU: 3 Bow Bimini Top - Aluminium-BUNDLE

1.5m – 1.7m 1.4m MA 062-1
1.7m – 1.9m 1.6m MA 062-2
1.9m – 2.1m 1.8m MA 062-3
Installation Instructions


Altas Fabric Blue
Weight 310g/m²
Material 100% High Tech Polyester
Water Column ≥ 150 mbar (1500 mm)
Light & Weather Fastness Note 6-7
Tensile Strength ≈ 2200 N¹ | 1400 N²
Elongation ≈ 40 %¹ | 30 %²
Colour Fastness to rubbing Note 4-5³ | Note 44
Chlorine Resistant Note 4-5
Water Repellency Note 100
Oil Repellency Note 4
Coating Polyurethan [PU]
UV Protection Factor UPF 50+ (measured > UPF 80)
